Hi,

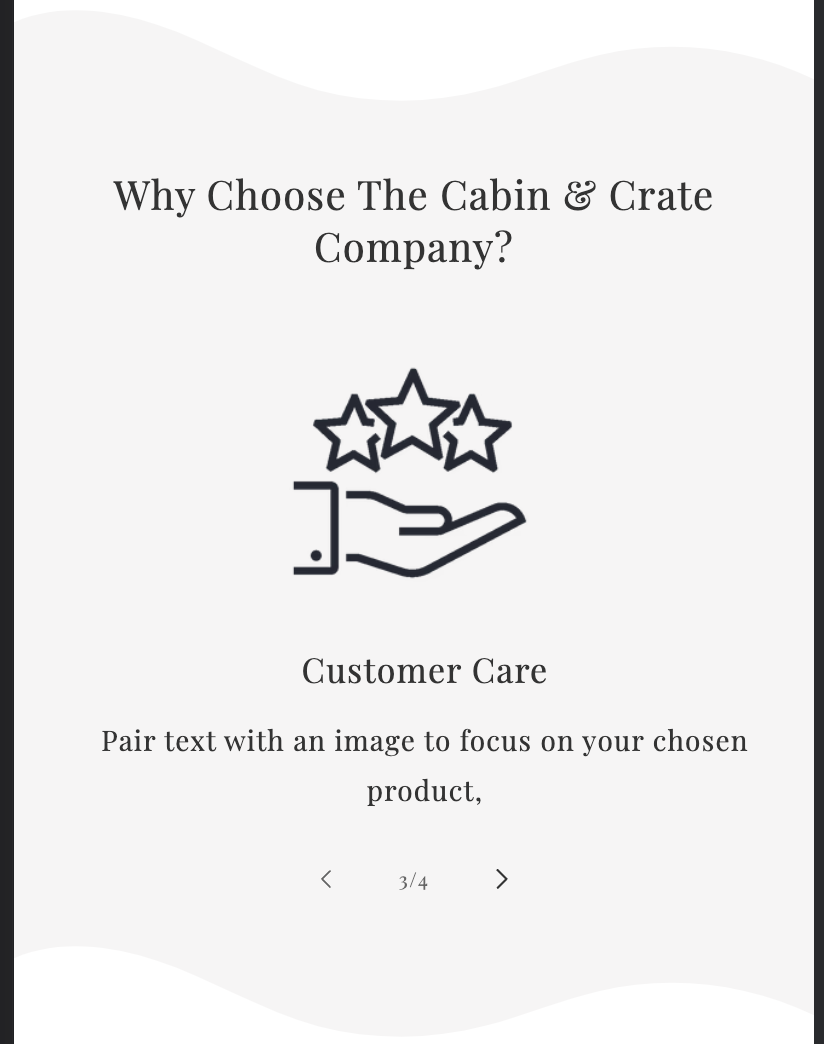

Do we have a way of changing from this:

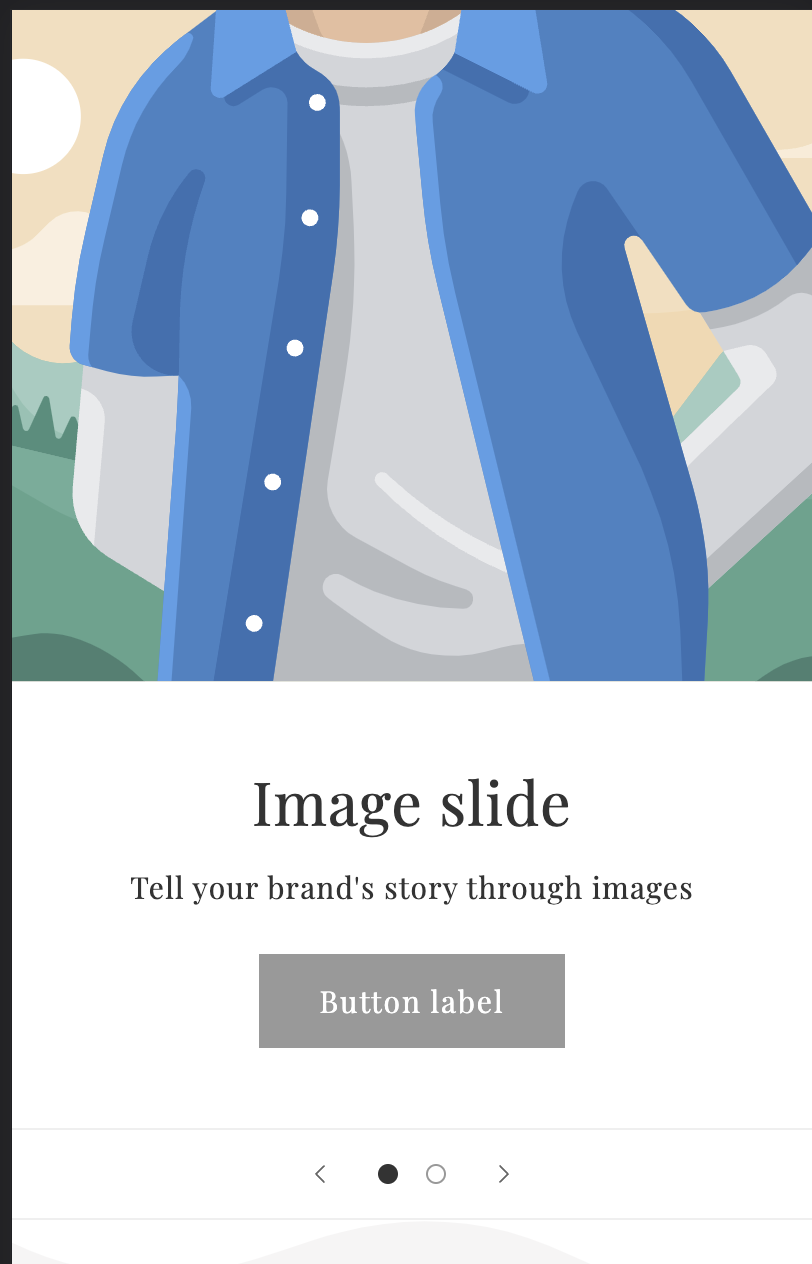

To this:
On the multi column section on Dawn? You get the option on the slider on the customiser but not on the multi column and other sections when swipe is enabled on mobile.
I am aware of how to do it for the actual slider, but not the other sections that show the slider controls on mobile.
Thanks
Hi,
can you share your store url
https://2rixqj1dlvr54hmm-78712340762.shopifypreview.com
You will need to view as mobile.
See the slider at the very bottom of the page - the control look like this as we have an option in the theme customiser to change the style on that section
If you then look at the sections above such as multi column and featured collection the controls looks like this:
We don’t have a way to change them in the customiser so looking to change the code so they look like the slider (the dots).
Thanks
Hello there.

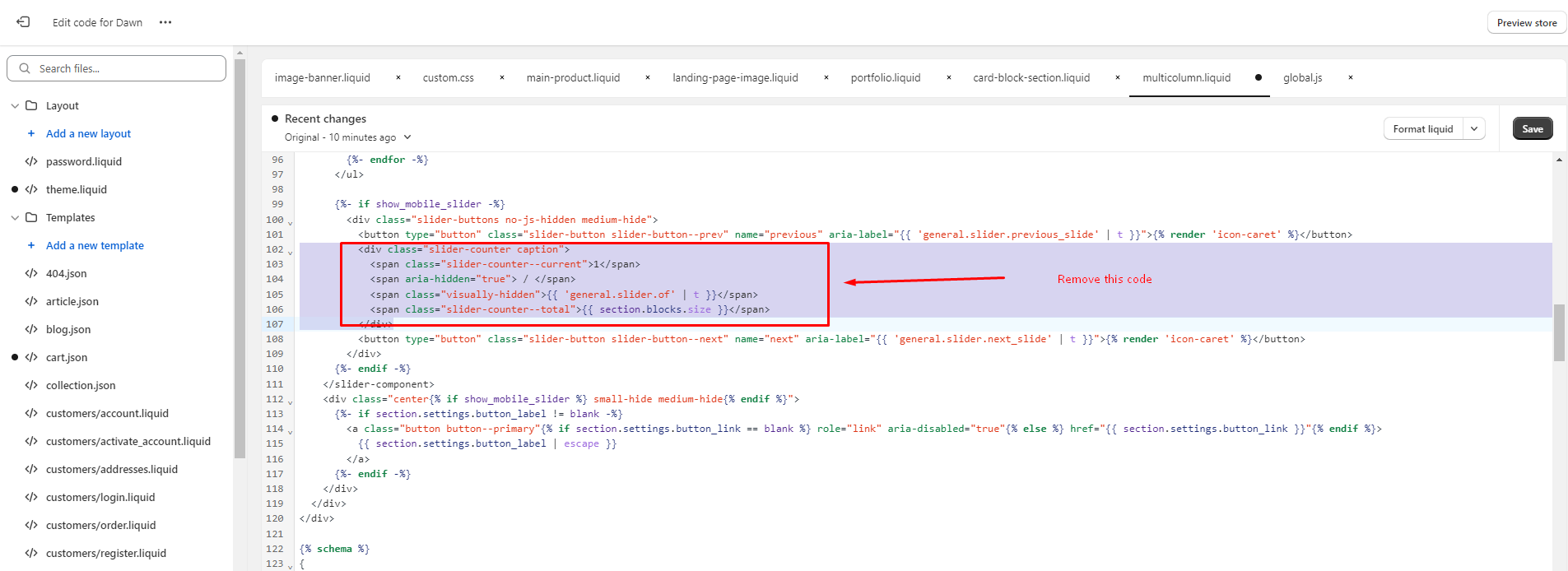

Remove this code.
1
/
{{ 'general.slider.of' | t }}
{{ section.blocks.size }}
Add this code.
{%- for block in section.blocks -%}
{%- endfor -%}

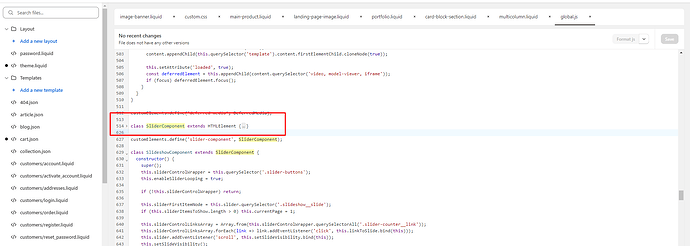

Comment or remove this functions.
class SliderComponent extends HTMLElement {
Add this one code.
class SliderComponent extends HTMLElement {
constructor() {
super();
this.slider = this.querySelector('[id^="Slider-"]');
this.sliderItems = this.querySelectorAll('[id^="Slide-"]');
this.enableSliderLooping = false;
this.currentPageElement = this.querySelector('.slider-counter--current');
this.pageTotalElement = this.querySelector('.slider-counter--total');
this.prevButton = this.querySelector('button[name="previous"]');
this.nextButton = this.querySelector('button[name="next"]');
if (!this.slider || !this.nextButton) return;
this.initPages();
const resizeObserver = new ResizeObserver(entries => this.initPages());
resizeObserver.observe(this.slider);
this.slider.addEventListener('scroll', this.update.bind(this));
this.prevButton.addEventListener('click', this.onButtonClick.bind(this));
this.nextButton.addEventListener('click', this.onButtonClick.bind(this));
this.sliderControlWrapper = this.querySelector('.slider-buttons');
if (!this.sliderControlWrapper) return;
this.sliderFirstItemNode = this.slider.querySelector('.slideshow__slide');
this.sliderControlLinksArray = Array.from(this.sliderControlWrapper.querySelectorAll('.slider-counter__link'));
this.sliderControlLinksArray.forEach(link => link.addEventListener('click', this.linkToSlide.bind(this)));
}
initPages() {
this.sliderItemsToShow = Array.from(this.sliderItems).filter(element => element.clientWidth > 0);
if (this.sliderItemsToShow.length < 2) return;
this.sliderItemOffset = this.sliderItemsToShow[1].offsetLeft - this.sliderItemsToShow[0].offsetLeft;
this.slidesPerPage = Math.floor(this.slider.clientWidth / this.sliderItemOffset);
this.totalPages = this.sliderItemsToShow.length - this.slidesPerPage + 1;
this.update();
}
resetPages() {
this.sliderItems = this.querySelectorAll('[id^="Slide-"]');
this.initPages();
}
update() {
const previousPage = this.currentPage;
this.currentPage = Math.round(this.slider.scrollLeft / this.sliderItemOffset) + 1;
if (this.currentPageElement && this.pageTotalElement) {
this.currentPageElement.textContent = this.currentPage;
this.pageTotalElement.textContent = this.totalPages;
}
if (this.currentPage != previousPage) {
this.dispatchEvent(new CustomEvent('slideChanged', { detail: {
currentPage: this.currentPage,
currentElement: this.sliderItemsToShow[this.currentPage - 1]
}}));
}
if (this.enableSliderLooping) return;
if (this.isSlideVisible(this.sliderItemsToShow[0])) {
this.prevButton.setAttribute('disabled', 'disabled');
} else {
this.prevButton.removeAttribute('disabled');
}
if (this.isSlideVisible(this.sliderItemsToShow[this.sliderItemsToShow.length - 1])) {
this.nextButton.setAttribute('disabled', 'disabled');
} else {
this.nextButton.removeAttribute('disabled');
}
this.sliderControlButtons = this.querySelectorAll('.slider-counter__link');
this.prevButton.removeAttribute('disabled');
if (!this.sliderControlButtons.length) return;
this.sliderControlButtons.forEach(link => {
link.classList.remove('slider-counter__link--active');
link.removeAttribute('aria-current');
});
this.sliderControlButtons[this.currentPage - 1].classList.add('slider-counter__link--active');
this.sliderControlButtons[this.currentPage - 1].setAttribute('aria-current', true);
}
isSlideVisible(element, offset = 0) {
const lastVisibleSlide = this.slider.clientWidth + this.slider.scrollLeft - offset;
return (element.offsetLeft + element.clientWidth) <= lastVisibleSlide && element.offsetLeft >= this.slider.scrollLeft;
}
onButtonClick(event) {
event.preventDefault();
const step = event.currentTarget.dataset.step || 1;
this.slideScrollPosition = event.currentTarget.name === 'next' ? this.slider.scrollLeft + (step * this.sliderItemOffset) : this.slider.scrollLeft - (step * this.sliderItemOffset);
this.slider.scrollTo({
left: this.slideScrollPosition
});
}
linkToSlide(event) {
event.preventDefault();
const slideScrollPosition = this.slider.scrollLeft + this.slider.clientWidth * (this.sliderControlLinksArray.indexOf(event.currentTarget) + 1 - this.currentPage);
this.slider.scrollTo({
left: slideScrollPosition
});
}
}
Hi,
This words great on the multi column and the collection list but doesn’t work on the featured collection or featured blog - does it need changed for that? I have updated store front so you can see what I mean.
Thanks for your help.
Hi @cabinandcrate ,
May I suggest to update code these steps:
Go to Store Online-> theme → edit code
Sections/multicolumn.liquid
Replace code in this file with code below
{{ 'section-multicolumn.css' | asset_url | stylesheet_tag }}
{{ 'component-rte.css' | asset_url | stylesheet_tag }}
{%- style -%}
.section-{{ section.id }}-padding {
padding-top: {{ section.settings.padding_top | times: 0.75 | round: 0 }}px;
padding-bottom: {{ section.settings.padding_bottom | times: 0.75 | round: 0 }}px;
}
@media screen and (min-width: 750px) {
.section-{{ section.id }}-padding {
padding-top: {{ section.settings.padding_top }}px;
padding-bottom: {{ section.settings.padding_bottom }}px;
}
}
{%- endstyle -%}
{%- liquid
assign columns_mobile_int = section.settings.columns_mobile | plus: 0
assign show_mobile_slider = false
if section.settings.swipe_on_mobile and section.blocks.size > columns_mobile_int
assign show_mobile_slider = true
endif
-%}
{%- unless section.settings.title == blank -%}
##
{{ section.settings.title | escape }}
{%- if section.settings.button_label != blank and show_mobile_slider -%}
{{- section.settings.button_label | escape -}}
{%- endif -%}
{%- endunless -%}
{%- if section.settings.button_label != blank -%}
{{ section.settings.button_label | escape }}
{%- endif -%}
{% schema %}
{
"name": "t:sections.multicolumn.name",
"class": "section",
"tag": "section",
"disabled_on": {
"groups": ["header", "footer"]
},
"settings": [
{
"type": "text",
"id": "title",
"default": "Multicolumn",
"label": "t:sections.multicolumn.settings.title.label"
},
{
"type": "select",
"id": "heading_size",
"options": [
{
"value": "h2",
"label": "t:sections.all.heading_size.options__1.label"
},
{
"value": "h1",
"label": "t:sections.all.heading_size.options__2.label"
},
{
"value": "h0",
"label": "t:sections.all.heading_size.options__3.label"
}
],
"default": "h1",
"label": "t:sections.all.heading_size.label"
},
{
"type": "select",
"id": "image_width",
"options": [
{
"value": "third",
"label": "t:sections.multicolumn.settings.image_width.options__1.label"
},
{
"value": "half",
"label": "t:sections.multicolumn.settings.image_width.options__2.label"
},
{
"value": "full",
"label": "t:sections.multicolumn.settings.image_width.options__3.label"
}
],
"default": "full",
"label": "t:sections.multicolumn.settings.image_width.label"
},
{
"type": "select",
"id": "image_ratio",
"options": [
{
"value": "adapt",
"label": "t:sections.multicolumn.settings.image_ratio.options__1.label"
},
{
"value": "portrait",
"label": "t:sections.multicolumn.settings.image_ratio.options__2.label"
},
{
"value": "square",
"label": "t:sections.multicolumn.settings.image_ratio.options__3.label"
},
{
"value": "circle",
"label": "t:sections.multicolumn.settings.image_ratio.options__4.label"
}
],
"default": "adapt",
"label": "t:sections.multicolumn.settings.image_ratio.label"
},
{
"type": "range",
"id": "columns_desktop",
"min": 1,
"max": 6,
"step": 1,
"default": 3,
"label": "t:sections.multicolumn.settings.columns_desktop.label"
},
{
"type": "select",
"id": "column_alignment",
"options": [
{
"value": "left",
"label": "t:sections.multicolumn.settings.column_alignment.options__1.label"
},
{
"value": "center",
"label": "t:sections.multicolumn.settings.column_alignment.options__2.label"
}
],
"default": "left",
"label": "t:sections.multicolumn.settings.column_alignment.label"
},
{
"type": "select",
"id": "background_style",
"options": [
{
"value": "none",
"label": "t:sections.multicolumn.settings.background_style.options__1.label"
},
{
"value": "primary",
"label": "t:sections.multicolumn.settings.background_style.options__2.label"
}
],
"default": "primary",
"label": "t:sections.multicolumn.settings.background_style.label"
},
{
"type": "text",
"id": "button_label",
"default": "Button label",
"label": "t:sections.multicolumn.settings.button_label.label"
},
{
"type": "url",
"id": "button_link",
"label": "t:sections.multicolumn.settings.button_link.label"
},
{
"type": "select",
"id": "color_scheme",
"options": [
{
"value": "accent-1",
"label": "t:sections.all.colors.accent_1.label"
},
{
"value": "accent-2",
"label": "t:sections.all.colors.accent_2.label"
},
{
"value": "background-1",
"label": "t:sections.all.colors.background_1.label"
},
{
"value": "background-2",
"label": "t:sections.all.colors.background_2.label"
},
{
"value": "inverse",
"label": "t:sections.all.colors.inverse.label"
}
],
"default": "background-1",
"label": "t:sections.all.colors.label"
},
{
"type": "header",
"content": "t:sections.multicolumn.settings.header_mobile.content"
},
{
"type": "select",
"id": "columns_mobile",
"options": [
{
"value": "1",
"label": "t:sections.multicolumn.settings.columns_mobile.options__1.label"
},
{
"value": "2",
"label": "t:sections.multicolumn.settings.columns_mobile.options__2.label"
}
],
"default": "1",
"label": "t:sections.multicolumn.settings.columns_mobile.label"
},
{
"type": "checkbox",
"id": "swipe_on_mobile",
"default": false,
"label": "t:sections.multicolumn.settings.swipe_on_mobile.label"
},
{
"type": "header",
"content": "t:sections.all.padding.section_padding_heading"
},
{
"type": "range",
"id": "padding_top",
"min": 0,
"max": 100,
"step": 4,
"unit": "px",
"label": "t:sections.all.padding.padding_top",
"default": 36
},
{
"type": "range",
"id": "padding_bottom",
"min": 0,
"max": 100,
"step": 4,
"unit": "px",
"label": "t:sections.all.padding.padding_bottom",
"default": 36
}
],
"blocks": [
{
"type": "column",
"name": "t:sections.multicolumn.blocks.column.name",
"settings": [
{
"type": "image_picker",
"id": "image",
"label": "t:sections.multicolumn.blocks.column.settings.image.label"
},
{
"type": "text",
"id": "title",
"default": "Column",
"label": "t:sections.multicolumn.blocks.column.settings.title.label"
},
{
"type": "richtext",
"id": "text",
"default": "
Pair text with an image to focus on your chosen product, collection, or blog post. Add details on availability, style, or even provide a review.
",
"label": "t:sections.multicolumn.blocks.column.settings.text.label"
},
{
"type": "text",
"id": "link_label",
"label": "t:sections.multicolumn.blocks.column.settings.link_label.label"
},
{
"type": "url",
"id": "link",
"label": "t:sections.multicolumn.blocks.column.settings.link.label"
}
]
}
],
"presets": [
{
"name": "t:sections.multicolumn.presets.name",
"blocks": [
{
"type": "column"
},
{
"type": "column"
},
{
"type": "column"
}
]
}
]
}
{% endschema %}
Hello @cabinandcrate
Ok checking.
Thank you for your response. It’s good to know that it’s worked for you. Kindly feel free to get back to me if you need any further assistance.
If helpful then please Like and Accept Solution.
Thanks - if you could let me know how to do it on the featured blog and featured collection sections on the home page that would be great.
Hi,
Did you get a solution to this? I still can’t get it to display correct only the featured collection and featured blog.
Thanks
Hello @cabinandcrate
Hello there.
Remove this code.
1
/
{{ 'general.slider.of' | t }}
{{ products_to_display }}
Add this code.
{%- for block in section.settings.collection.products limit: section.settings.products_to_show -%}
{%- endfor -%}
Remove this code.
1
/
{{ 'general.slider.of' | t }}
{{ section.settings.post_limit }}
Add this code.
{%- for block in section.settings.collection.products limit: section.settings.products_to_show -%}
{%- endfor -%}
Many thanks for this - very helpful.
I did have the change the featured blog code to the code below, for anyone reading this.
{%- for article in section.settings.blog.articles limit: section.settings.post_limit -%}
{%- endfor -%}
Hello @cabinandcrate
Thank you for your response. It’s good to know that it’s worked for you. Kindly feel free to get back to me if you need any further assistance.
If helpful then please All Like and Accept Solution.
Possibly due to an update to Shopify’s code, the global.js code no longer works. Instead use:
class SliderComponent extends HTMLElement {
constructor() {
super();
this.slider = this.querySelector('[id^="Slider-"]');
this.sliderItems = this.querySelectorAll('[id^="Slide-"]');
this.enableSliderLooping = false;
this.currentPageElement = this.querySelector('.slider-counter--current');
this.pageTotalElement = this.querySelector('.slider-counter--total');
this.prevButton = this.querySelector('button[name="previous"]');
this.nextButton = this.querySelector('button[name="next"]');
if (!this.slider || !this.nextButton) return;
this.initPages();
const resizeObserver = new ResizeObserver(entries => this.initPages());
resizeObserver.observe(this.slider);
this.slider.addEventListener('scroll', this.update.bind(this));
this.prevButton.addEventListener('click', this.onButtonClick.bind(this));
this.nextButton.addEventListener('click', this.onButtonClick.bind(this));
this.sliderControlWrapper = this.querySelector('.slider-buttons');
if (!this.sliderControlWrapper) return;
this.sliderFirstItemNode = this.slider.querySelector('.slideshow__slide');
this.sliderControlLinksArray = Array.from(this.sliderControlWrapper.querySelectorAll('.slider-counter__link'));
this.sliderControlLinksArray.forEach(link => link.addEventListener('click', this.linkToSlide.bind(this)));
}
initPages() {
this.sliderItemsToShow = Array.from(this.sliderItems).filter(element => element.clientWidth > 0);
if (this.sliderItemsToShow.length < 2) return;
this.sliderItemOffset = this.sliderItemsToShow[1].offsetLeft - this.sliderItemsToShow[0].offsetLeft;
this.slidesPerPage = Math.floor(this.slider.clientWidth / this.sliderItemOffset);
this.totalPages = this.sliderItemsToShow.length - this.slidesPerPage + 1;
this.update();
}
resetPages() {
this.sliderItems = this.querySelectorAll('[id^="Slide-"]');
this.initPages();
}
update() {
const previousPage = this.currentPage;
this.currentPage = Math.round(this.slider.scrollLeft / this.sliderItemOffset) + 1;
if (this.currentPageElement && this.pageTotalElement) {
this.currentPageElement.textContent = this.currentPage;
this.pageTotalElement.textContent = this.totalPages;
}
if (this.currentPage != previousPage) {
this.dispatchEvent(new CustomEvent('slideChanged', { detail: {
currentPage: this.currentPage,
currentElement: this.sliderItemsToShow[this.currentPage - 1]
}}));
}
if (this.enableSliderLooping) return;
if (this.isSlideVisible(this.sliderItemsToShow[0])) {
this.prevButton.setAttribute('disabled', 'disabled');
} else {
this.prevButton.removeAttribute('disabled');
}
if (this.isSlideVisible(this.sliderItemsToShow[this.sliderItemsToShow.length - 1])) {
this.nextButton.setAttribute('disabled', 'disabled');
} else {
this.nextButton.removeAttribute('disabled');
}
this.sliderControlButtons = this.querySelectorAll('.slider-counter__link');
this.prevButton.removeAttribute('disabled');
if (!this.sliderControlButtons.length) return;
this.sliderControlButtons.forEach(link => {
link.classList.remove('slider-counter__link--active');
link.removeAttribute('aria-current');
});
this.sliderControlButtons[this.currentPage - 1].classList.add('slider-counter__link--active');
this.sliderControlButtons[this.currentPage - 1].setAttribute('aria-current', true);
}
isSlideVisible(element, offset = 0) {
const lastVisibleSlide = this.slider.clientWidth + this.slider.scrollLeft - offset;
return (element.offsetLeft + element.clientWidth) <= lastVisibleSlide && element.offsetLeft >= this.slider.scrollLeft;
}
onButtonClick(event) {
event.preventDefault();
const step = event.currentTarget.dataset.step || 1;
this.slideScrollPosition = event.currentTarget.name === 'next' ? this.slider.scrollLeft + (step * this.sliderItemOffset) : this.slider.scrollLeft - (step * this.sliderItemOffset);
this.slider.scrollTo({
left: this.slideScrollPosition
});
}
setSlidePosition(position) {
this.slider.scrollTo({
left: position,
});
}
}
This code also doesn’t work anymore?! It doesn’t do anything to the slider, but it crashes the mobile menu and renders the burger menu button non functional. any idea why this is happening?
