Hi there,
My webshop https://akaro-online.com/ is using the refresh theme and contains good quality product images.
Unfortunately, when adding a collection to the homepage, the quality of the product image is much worse. When zooming in you see the bad quality. How can I solve this problem?
Hopefully you guys have a quick and easy way to solve this problem.
Thanks in advance!
Hi @TomDeschepper ,

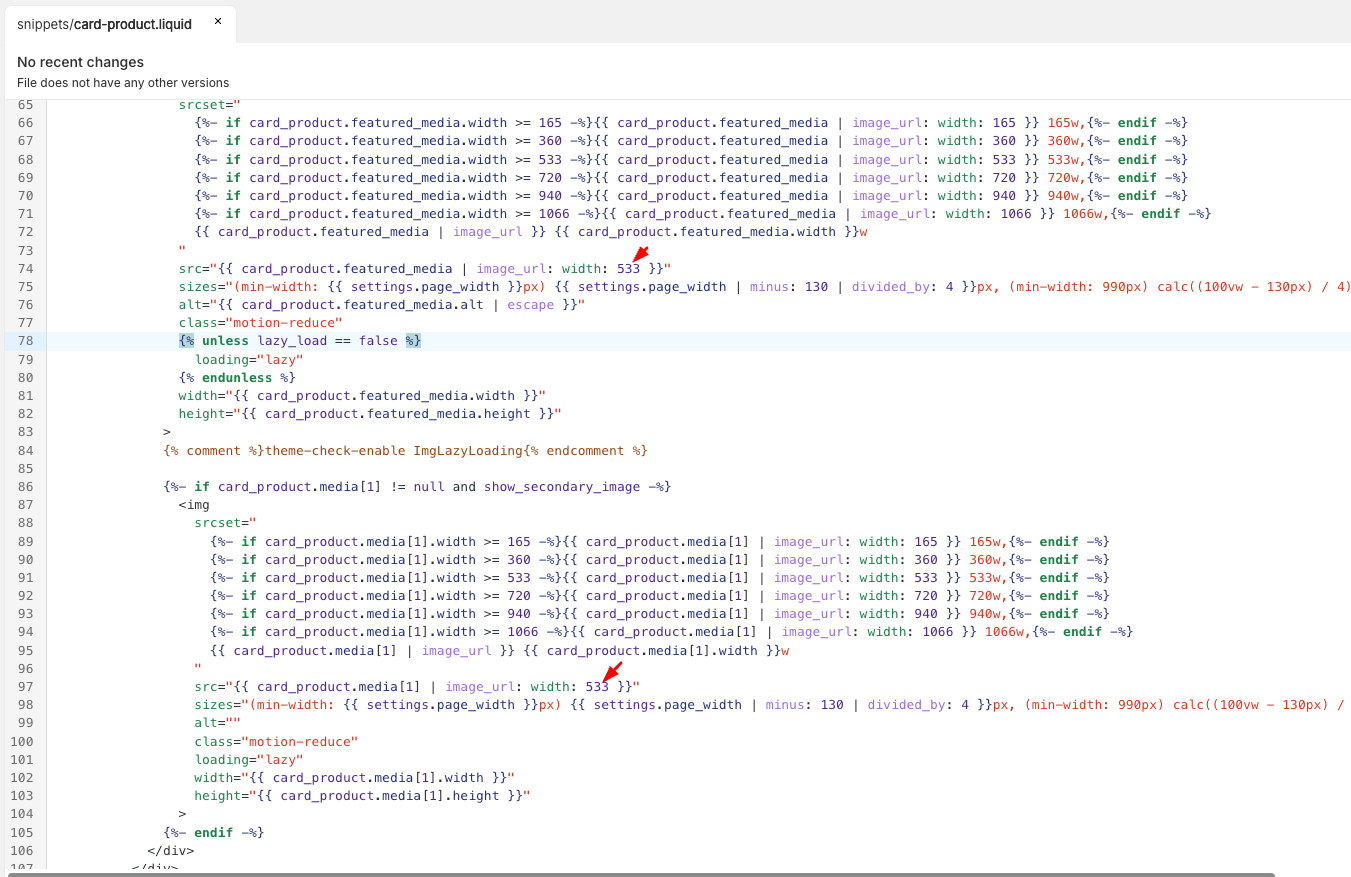

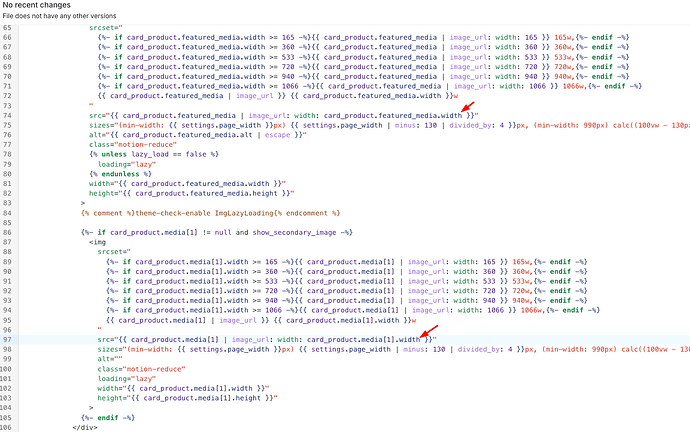

Please go to Actions > Edit code > snippets > card-product.liquid file and change code here:
Code:
card_product.featured_media.width
card_product.media[1].width
Hi Namphan,
Thank you for your reply. Unfortunately, this has no effect on the store, the quality of the pictures in the collection is still blurry.
Do you have another possible solution?
Hi @TomDeschepper ,
Please send me the code of card-product.liquid file, I will check and guide you
Sure, that would be great. After I noticed that the change in code didn’t work, I changed it again to the original code:
{% comment %}
Renders a product card
Accepts:
Usage:
{% render ‘card-product’, show_vendor: section.settings.show_vendor %}
{% endcomment %}
{{ ‘component-rating.css’ | asset_url | stylesheet_tag }}
{{ ‘component-volume-pricing.css’ | asset_url | stylesheet_tag }}
{{ ‘component-price.css’ | asset_url | stylesheet_tag }}
{{ ‘quick-order-list.css’ | asset_url | stylesheet_tag }}
{{ ‘quantity-popover.css’ | asset_url | stylesheet_tag }}
{%- if card_product and card_product != empty -%}
{%- liquid
assign ratio = 1
if card_product.featured_media and media_aspect_ratio == ‘portrait’
assign ratio = 0.8
elsif card_product.featured_media and media_aspect_ratio == ‘adapt’
assign ratio = card_product.featured_media.aspect_ratio
endif
if ratio == 0 or ratio == null
assign ratio = 1
endif
-%}
{%- if card_product.media[1] != null and show_secondary_image -%}
<img
srcset="
{%- if card_product.media[1].width >= 165 -%}{{ card_product.media[1] | image_url: width: 165 }} 165w,{%- endif -%}
{%- if card_product.media[1].width >= 360 -%}{{ card_product.media[1] | image_url: width: 360 }} 360w,{%- endif -%}
{%- if card_product.media[1].width >= 533 -%}{{ card_product.media[1] | image_url: width: 533 }} 533w,{%- endif -%}
{%- if card_product.media[1].width >= 720 -%}{{ card_product.media[1] | image_url: width: 720 }} 720w,{%- endif -%}
{%- if card_product.media[1].width >= 940 -%}{{ card_product.media[1] | image_url: width: 940 }} 940w,{%- endif -%}
{%- if card_product.media[1].width >= 1066 -%}{{ card_product.media[1] | image_url: width: 1066 }} 1066w,{%- endif -%}
{{ card_product.media[1] | image_url }} {{ card_product.media[1].width }}w
"
src=“{{ card_product.media[1] | image_url: width: 533 }}”
sizes=“(min-width: {{ settings.page_width }}px) {{ settings.page_width | minus: 130 | divided_by: 4 }}px, (min-width: 990px) calc((100vw - 130px) / 4), (min-width: 750px) calc((100vw - 120px) / 3), calc((100vw - 35px) / 2)”
alt=“”
class=“motion-reduce”
loading=“lazy”
width=“{{ card_product.media[1].width }}”
height=“{{ card_product.media[1].height }}”
{%- endif -%}
{{ block.settings.description | escape }}
{%- if show_rating and card_product.metafields.reviews.rating.value != blank -%}
{% liquid
assign rating_decimal = 0
assign decimal = card_product.metafields.reviews.rating.value.rating | modulo: 1
if decimal >= 0.3 and decimal <= 0.7
assign rating_decimal = 0.5
elsif decimal > 0.7
assign rating_decimal = 1
endif
%}
{{- card_product.metafields.reviews.rating.value }} / {{ card_product.metafields.reviews.rating.value.scale_max -}}
({{ card_product.metafields.reviews.rating_count }}) {{- card_product.metafields.reviews.rating_count }} {{ 'accessibility.total_reviews' | t -}}
{%- endif -%}{% render ‘price’, product: card_product, price_class: ‘’, show_compare_at_price: true %}
{%- if card_product.quantity_price_breaks_configured? -%}
{% if card_product.variants.size == 1 and quick_add == ‘bulk’ %}
{% liquid
assign quantity_rule = card_product.selected_or_first_available_variant.quantity_rule
assign has_qty_rules = false
if quantity_rule.increment > 1 or quantity_rule.min > 1 or quantity_rule.max != null
assign has_qty_rules = true
endif
%}
{{ ‘products.product.volume_pricing.note’ | t }}
{{ ‘products.product.volume_pricing.note’ | t }}
{% else %}
Hi @TomDeschepper ,
Please change all code:
{% comment %}
Renders a product card
Accepts:
- card_product: {Object} Product Liquid object (optional)
- media_aspect_ratio: {String} Size of the product image card. Values are "square" and "portrait". Default is "square" (optional)
- image_shape: {String} Image mask to apply to the product image card. Values are "arch", "blob", "chevronleft", "chevronright", "diamond", "parallelogram", and "round". (optional)
- show_secondary_image: {Boolean} Show the secondary image on hover. Default: false (optional)
- show_vendor: {Boolean} Show the product vendor. Default: false
- show_rating: {Boolean} Show the product rating. Default: false
- extend_height: {Boolean} Card height extends to available container space. Default: true (optional)
- lazy_load: {Boolean} Image should be lazy loaded. Default: true (optional)
- quick_add: {Boolean} Show the quick add button.
- section_id: {String} The ID of the section that contains this card.
- horizontal_class: {Boolean} Add a card--horizontal class if set to true. Default: false (optional)
- horizontal_quick_add: {Boolean} Changes the quick add button styles when set to true. Default: false (optional)
- placeholder_image: {String} The placeholder image to use when no product exists. Default: 'product-apparel-2' (optional)
Usage:
{% render 'card-product', show_vendor: section.settings.show_vendor %}
{% endcomment %}
{{ 'component-rating.css' | asset_url | stylesheet_tag }}
{{ 'component-volume-pricing.css' | asset_url | stylesheet_tag }}
{{ 'component-price.css' | asset_url | stylesheet_tag }}
{{ 'quick-order-list.css' | asset_url | stylesheet_tag }}
{{ 'quantity-popover.css' | asset_url | stylesheet_tag }}
{%- if card_product and card_product != empty -%}
{%- liquid
assign ratio = 1
if card_product.featured_media and media_aspect_ratio == 'portrait'
assign ratio = 0.8
elsif card_product.featured_media and media_aspect_ratio == 'adapt'
assign ratio = card_product.featured_media.aspect_ratio
endif
if ratio == 0 or ratio == null
assign ratio = 1
endif
-%}
{%- if card_product.featured_media -%}
{% comment %}theme-check-disable ImgLazyLoading{% endcomment %}
{% comment %}theme-check-enable ImgLazyLoading{% endcomment %}
{%- if card_product.media[1] != null and show_secondary_image -%}
{%- endif -%}
{%- endif -%}
###
{{ card_product.title | escape }}
{%- if card_product.available == false -%}
{{- 'products.product.sold_out' | t -}}
{%- elsif card_product.compare_at_price > card_product.price and card_product.available -%}
{{- 'products.product.on_sale' | t -}}
{%- endif -%}
###
{{ card_product.title | escape }}
{%- if show_vendor -%}
{{ 'accessibility.vendor' | t }}
{{ card_product.vendor }}
{%- endif -%}
{{ block.settings.description | escape }}
{%- if show_rating and card_product.metafields.reviews.rating.value != blank -%}
{% liquid
assign rating_decimal = 0
assign decimal = card_product.metafields.reviews.rating.value.rating | modulo: 1
if decimal >= 0.3 and decimal <= 0.7
assign rating_decimal = 0.5
elsif decimal > 0.7
assign rating_decimal = 1
endif
%}
{{- card_product.metafields.reviews.rating.value }} /
{{ card_product.metafields.reviews.rating.value.scale_max -}}
({{ card_product.metafields.reviews.rating_count }})
{{- card_product.metafields.reviews.rating_count }}
{{ 'accessibility.total_reviews' | t -}}
{%- endif -%}
{% render 'price', product: card_product, price_class: '', show_compare_at_price: true %}
{%- if card_product.quantity_price_breaks_configured? -%}
{% if card_product.variants.size == 1 and quick_add == 'bulk' %}
{% liquid
assign quantity_rule = card_product.selected_or_first_available_variant.quantity_rule
assign has_qty_rules = false
if quantity_rule.increment > 1 or quantity_rule.min > 1 or quantity_rule.max != null
assign has_qty_rules = true
endif
%}
{% endif %}
{%- endif -%}
{% if quick_add == 'standard' %}
{%- liquid
assign product_form_id = 'quick-add-' | append: section_id | append: card_product.id
assign qty_rules = false
if card_product.selected_or_first_available_variant.quantity_rule.min > 1 or card_product.selected_or_first_available_variant.quantity_rule.max != null or card_product.selected_or_first_available_variant.quantity_rule.increment > 1
assign qty_rules = true
endif
-%}
{%- if card_product.variants.size > 1 or qty_rules -%}
{%- else -%}
{%- endif -%}
{% elsif quick_add == 'bulk' %}
{% if card_product.variants.size == 1 %}
{% else %}
{%- liquid
assign product_form_id = 'quick-add-' | append: section_id | append: card_product.id
assign qty_rules = false
if card_product.selected_or_first_available_variant.quantity_rule.min > 1 or card_product.selected_or_first_available_variant.quantity_rule.max != null or card_product.selected_or_first_available_variant.quantity_rule.increment > 1
assign qty_rules = true
endif
-%}
{% endif %}
{% endif %}
{%- if card_product.available == false -%}
{{- 'products.product.sold_out' | t -}}
{%- elsif card_product.compare_at_price > card_product.price and card_product.available -%}
{{- 'products.product.on_sale' | t -}}
{%- endif -%}
{%- else -%}
{%- liquid
assign ratio = 1
if media_aspect_ratio == 'portrait'
assign ratio = 0.8
endif
-%}
{%- if placeholder_image -%}
{{ placeholder_image | placeholder_svg_tag: 'placeholder-svg' }}
{%- else -%}
{{ 'product-apparel-2' | placeholder_svg_tag: 'placeholder-svg' }}
{% endif %}
###
{{ 'onboarding.product_title' | t }}
{%- if show_vendor -%}
{{ 'accessibility.vendor' | t }}
{{ 'products.product.vendor' | t }}
{%- endif -%}
{% render 'price', show_compare_at_price: true %}
{%- endif -%}
Thank you so much! It works better now
Hi @TomDeschepper ,
If you have any questions, you can contact me directly.
Nice to meet you
