Obtaining Values from Metaobjects referenced in Metafields in Product Template

Maxplaining · January 24, 2025, 3:31pm

Problem Description:

I’m trying to access a metaobject’s fields directly in Liquid, but the fields are returning null, even though the metaobject is properly created and assigned.

Here are the details of my setup:

Metafield Configuration:
- Metafield: custom.primary_material
- Type: Single metaobject reference
- References: Metaobject of type material
Metaobject Configuration:
- Metaobject Type: material
- Fields in Metaobject:
  - material.name (Name of the material)
  - material.description (Description of the material)
- Status: The metaobject is set to Active in Shopify Admin.
Liquid Code: I’m using the following Liquid code to access the metaobject fields:
```
{% assign material = shop.metaobjects.material['teak'] %}

<div>
  <h3>Debugging Material Metaobject</h3>

  {% if material %}

    <p><strong>Raw Fields:</strong> {{ material.fields | json }}</p>
    <p><strong>Material Name:</strong> {{ material.fields['material.name'] }}</p>
    <p><strong>Material Description:</strong> {{ material.fields['material.description'] }}</p>
  {% else %}
    <p>No material metaobject found.</p>
  {% endif %}
</div>
```
1. Expected Behavior:
  - The metaobject with the handle teak exists in the material type.
  - I expect to see material.name and material.description fields populated in the rendered output.
2. Actual Behavior:
  - The material metaobject is found (Raw Value: MetaobjectDrop), but material.fields returns null.
  - As a result, material.fields[‘material.name’] and material.fields[‘material.description’] are empty.
Debugging Attempts:- Verified that the material metaobject type has fields material.name and material.description.
- Ensured the metaobject handle (teak) is correct.
- Set the metaobject status to Active.
- Checked metafield assignment in the product, and it is referencing the correct metaobject.
- Referred to this page for guidance: How can I access metaobject values in product metafields?.
Full Debugging Output:

Here’s the rendered output when I use the debugging code:
```
Debugging Material Metaobject
Raw Fields: null
Material Name:
Material Description:
```
Additional Observations:- If I try to list all metaobjects of type material using:
```
```
{% for material_entry in shop.metaobjects.material.values %}
  <p>Handle: {{ material_entry.system.handle }}</p>
{% endfor %}
```

It correctly displays the handle teak, confirming the metaobject exists.
```
Question:1. Why is material.fields returning null even though the metaobject is set to Active and has fields configured?
1. Is there something wrong with how I’m accessing the fields, or could there be an issue with the metaobject setup?
MWE (Minimal Working Example):

Here’s the code I’m using to directly access and debug the metaobject fields:
```
{% assign material = shop.metaobjects.material['teak'] %}

<div>
  <h3>Debugging Material Metaobject</h3>

  {% if material %}

    <p><strong>Raw Fields:</strong> {{ material.fields | json }}</p>
    <p><strong>Material Name:</strong> {{ material.fields['material.name'] }}</p>
    <p><strong>Material Description:</strong> {{ material.fields['material.description'] }}</p>
  {% else %}
    <p>No material metaobject found.</p>
  {% endif %}
</div>
```
I now try to access a specific material but obviously this should be populated dynamically for each product.

Context:- Theme: Custom theme (Next) using Custom Liquid blocks in Product Template.
- Objective: To display material.name (and material.description) for the metaobject teak.
- Extra: I can scale this for other metafields referencing metaobjects.
What I Need Help With:1. Why are the fields returning null?
1. Are there additional steps or configurations needed for accessing metaobject fields in Liquid?
Any guidance or suggestions would be greatly appreciated. Thank you!

How can I create this product specification table?

made4Uo · January 24, 2025, 4:46pm

Hi @Maxplaining

First, Shopify metaobject is object array type so we have to treat it as such.

Call the metaobject values. This will return an array. I am assuming your metaobject name is material

{% assign materials = shop.metaobjects['material'].values %}

OR

{% assign materials = shop.metaobjects.material.values %}

Since the material is an array, we have to use iterations e.g. forloop,

{% for material in materials %}
{{ material }}
{% endfor %}

Depending on what data you have under material e.g. richtext, file, product. You have to treat it differently. I would suggest to console log the values to understand the data

Below is the updated code

{% assign materials = shop.metaobjects.material.values %}

<div>
  <h3>Debugging Material Metaobject</h3>

  {% for material in materials %}
    <!-- Debug Metaobject Fields -->
    <p><strong>Raw Fields:</strong> {{ material.fields | json }}</p>   <!-- You might have to use forloop on this -->
    <p><strong>Material Name:</strong> {{ material.fields['material.name'] }}</p>  <!-- I am a little confuse what data do you have -->
    <p><strong>Material Description:</strong> {{ material.fields['material.description'] }}</p>
  {% endfor %}
</div>

Maxplaining · January 24, 2025, 5:16pm

Hi @made4Uo

I got the list of available materials to work, but for the actual items listed from that metaobject in the metafield on the product page it remains blank.


  ### Materials for This Product


  {% assign primary_material = product.metafields.custom.primary_material.value %}
  {% if primary_material %}



**Primary Material:** {{ primary_material.name }}



  {% else %}


No primary material is selected for this product.

  {% endif %}


  {% assign secondary_material = product.metafields.custom.secondary_material.value %}
  {% if secondary_material %}



**Secondary Material:** {{ secondary_material.name }}



  {% else %}


No secondary material is selected for this product.

  {% endif %}

{% assign materials = shop.metaobjects.material.values %}

  ### Material List

  {% for material in materials %}




**Material Name:** {{ material.name }}



**Material Description:** {{ material.description }}



  {% endfor %}

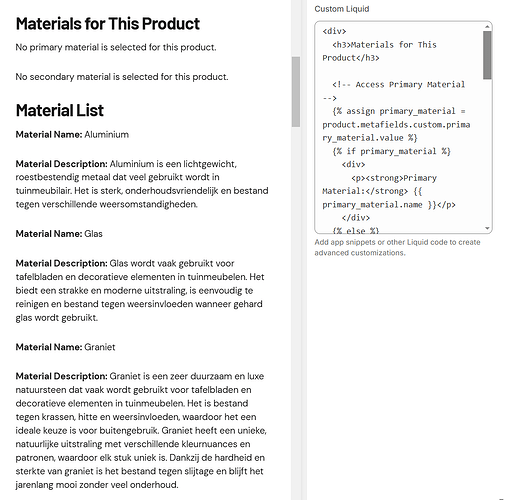

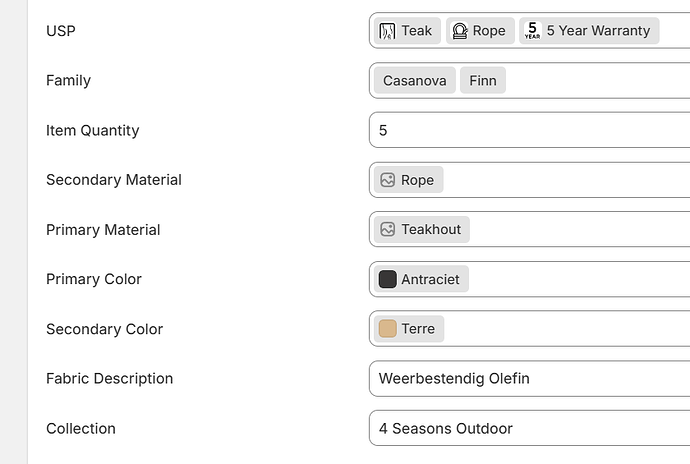

Below are some screenshots for reference.

made4Uo · January 24, 2025, 5:39pm

Hi @Maxplaining

Thank you for providing your structure. To call the metaobject with your structure, you can just add a value on the end of the product metafield

{% assign material = product.metafields.custom.primary_material.value %}

Maxplaining · January 24, 2025, 6:51pm

Hello @made4Uo

This now works for me on the correct product:

{% assign material = product.metafields.custom.primary_material.value %}

  {% if material %}


Primary Material: {{ material.name.value }}


  {% endif %}

When I try another metaobject (list) with the loop:

{% assign usps = product.metafields.custom.usp.value %}

  ### Unique Selling Points (USPs)




**Debug - Raw Value:** {{ usps | json }}

  {% if usps and usps.size > 0 %}


**Debug - Number of USPs:** {{ usps.size }}


    {% for usp in usps %}


          **USP Title:** {{ usp.title.value }}



    {% endfor %}
  {% else %}


No unique selling points available for this product.

  {% endif %}

I get this result:

Unique Selling Points (USPs)
Debug - Raw Value: [{"icon":["gid:\/\/shopify\/MediaImage\/46545862558019"],"title":"Teak","url":"https:\/\/cdn.shopify.com\/s\/files\/1\/0790\/2281\/7603\/files\/4so-icon_Teak.png?v=1714041306"},{"icon":["gid:\/\/shopify\/MediaImage\/46545862525251"],"title":"Rope","url":"https:\/\/cdn.shopify.com\/s\/files\/1\/0790\/2281\/7603\/files\/4so-icon_Rope_603ecc5d-7e7d-4f1d-8f24-1027f7eff26c.png?v=1714041306"},{"icon":["gid:\/\/shopify\/MediaImage\/46545862590787"],"title":"5 Year Warranty","url":"https:\/\/cdn.shopify.com\/s\/files\/1\/0790\/2281\/7603\/files\/4so-icon_5_jaar_garantie.png?v=1714041305"}]

No unique selling points available for this product.

How can I now make sure I get those entries in a formatted record so that I could build a specifications table from both metafields with their values and metafields referencing a metaobject (single or list)?

Maxplaining · January 24, 2025, 9:02pm

Solved my problem with below code:


{% assign materials = product.metafields.custom.materials.value %}
{% if materials %}

{% else %}

{% endif %}

{% assign primary_material = product.metafields.custom.primary_material.value %}
{% if primary_material %}

{% endif %}

{% assign secondary_material = product.metafields.custom.secondary_material.value %}
{% if secondary_material %}

{% endif %}

{% assign colors = product.metafields.shopify['color-pattern'].value %}
{% if colors %}

{% else %}

{% endif %}

{% assign stackable = product.metafields.custom.stackable.value %}
{% if stackable %}

{% endif %}

{% assign maximum_seats = product.metafields.custom.maximum_seats.value %}
{% if maximum_seats %}

{% endif %}

{% assign shipment_weight = product.metafields.custom.shipment_weight.value %}
{% if shipment_weight %}

{% endif %}

{% assign shape = product.metafields.custom.shape.value %}
{% if shape %}

{% endif %}

{% assign item_quantity = product.metafields.custom.item_quantity.value %}
{% if item_quantity %}

{% endif %}

{% assign fabric_description = product.metafields.custom.fabric_description.value %}
{% if fabric_description %}

{% endif %}

{% assign collection = product.metafields.custom.collection.value %}
{% if collection %}

{% endif %}

| Product Specificaties |  |
| - | - |
| Materials | <br>{% for material in materials %}<br>{{ material.name }}{% if forloop.last == false %}, {% endif %}<br>{% endfor %}<br> |
| Materials | No materials available for this product. |
| Primary Material | {{ primary_material.name }} |
| Secondary Material | {{ secondary_material.name }} |
| Colors | <br>{% for color in colors %}<br><br><br><br><br><br><br><br><br>{{ color.label }}{% if forloop.last == false %}, {% endif %}<br><br><br>{% endfor %}<br> |
| Colors | No colors available for this product. |
| Stackable | {{ stackable | capitalize }} |
| Maximum Seats | {{ maximum_seats }} |
| Shipment Weight | {{ shipment_weight }} kg |
| Shape | {{ shape.label }} |
| Item Quantity | {{ item_quantity }} |
| Fabric Description | {{ fabric_description }} |
| Collection | {{ collection }} |
